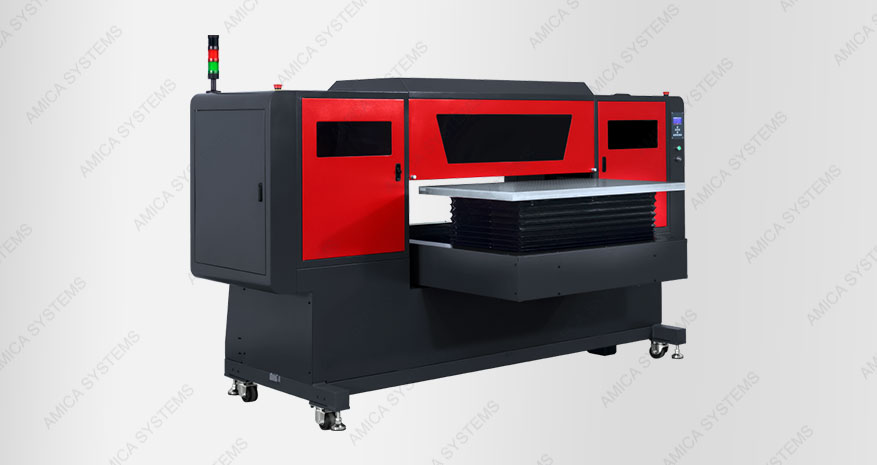

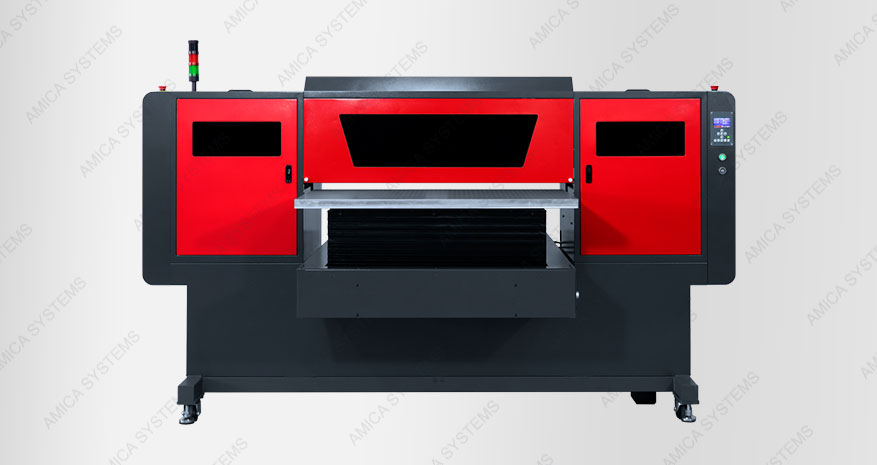

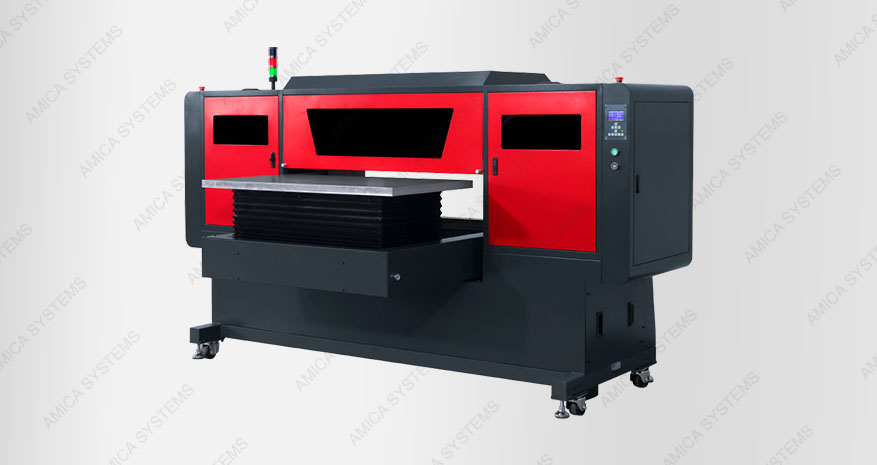

TDS PRO
UV-LED FLATBED INKJET PRINTER

TDS PRO is a UV-LED flatbed inkjet printer tailored for high-fidelity color printing (hexachrome printing) of CMYK plus orange and green to expand color gamut for better color reproduction.

Thanks to ColorPRINT RIP & color management software, as well as proprietary VDS (Variable Droplet Size) control technology, the TDS Pro is specialized in producing fine details, smooth gradients, and crisp small-sized text.

The reliable and compact 10-color channel design provides a wider color gamut and a wider variety of applications, which will bring you more business opportunities and potential profits.

The TDS PRO printer is an ideal solution for industrial decorations, personalized souvenirs, customized gifts, and special promotional materials.

TDS PRO
TDS PRO
TDS PRO

Case Stories

Inkjet Printing Technology in Phone Case Printing

T series flatbed printers, as an integration of AMICA’s 100% proprietary inkjet printing technology, become the ideal solution to personalized, customized and on-demand phone case printing.

Features

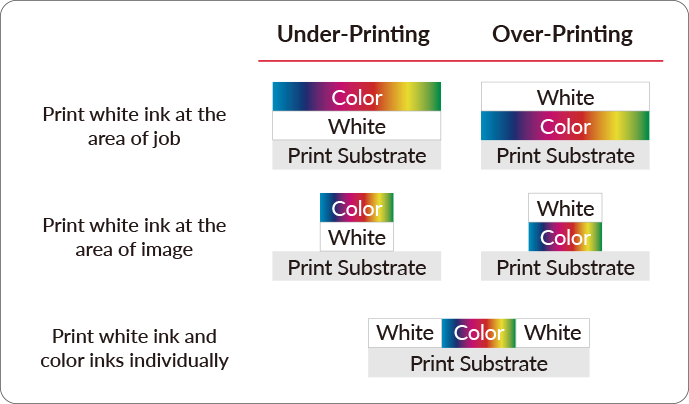

Superior white ink printing expands capabilities and business

Printing with high-density white inks, the TDS PRO printer offers bright and vivid colors on transparent and colored media. Thanks to the white ink circulation system, the TDS Pro easily keeps the white ink properly mixed for solid covering and coloration.

High-throw printing enables uniform printing on non-planar surfaces

The TDS Pro achieves precise droplet placement on surfaces with height variations, such as toy plates with raised edges, thereby delivering consistent print quality. Its high-throw printing capability supports surface height variations of up to 0.236”(6 mm) to 0.315”(8 mm).

* High-throw print quality may be influenced by many factors. Printing beyond the suggested distance is possible, though the results can vary depending on the environment, artwork, gradients, printhead condition, material, and surface profile.

Batch printing of Toy Plates,
with a Nozzle-to-Surface Distance of up to 0.315”(8 mm)

Orange and green expand the color gamut for better color reproduction

The TDS Pro makes prints more attractive and competitive by outputting not only a new range of oranges and greens, but also bright and vibrant yellows, reds, purples, blues, while maintaining smooth gradients.
Direct Printing with OrGr Inks on Frisbees

Printing with OrGr Inks Directly onto Silver Metallic Cardstock

Digital varnish printing creates special tactile and visual effects

Varnish printing provides a variety of surface finishes with attractive tactile and visual effects. The overall media can be covered with a gloss/ matte finish; or glossy/ matte spot varnish can be added to some specified appealing parts. Various types of patterns are embedded in the Print Production Watermark (PPW) software for digital varnish printing. Logos can be also printed out as varnish watermarks.

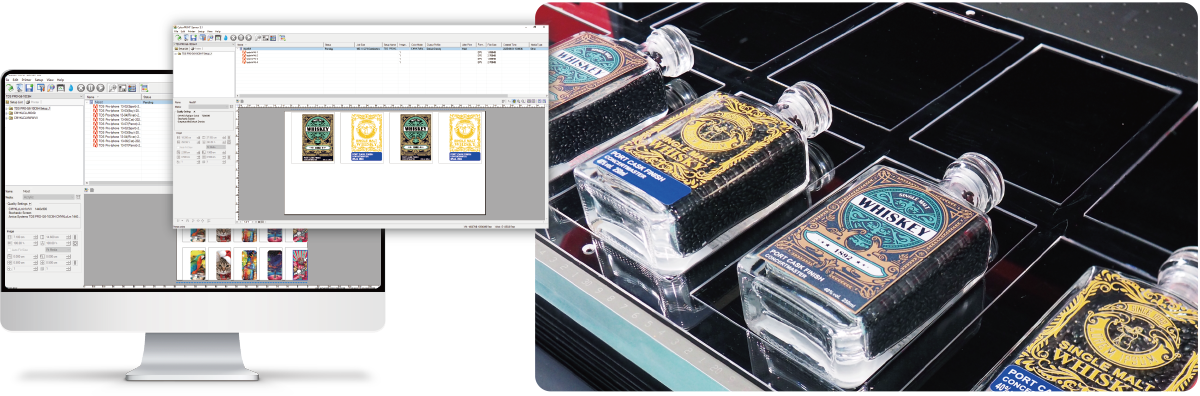

Template printing means high volumes and short lead time

The TDS Pro is an ideal solution for printing multiple small-sized objects simultaneously, even with different artworks. The fixture can be placed on the flatbed table to quickly position small-sized objects.
The ColorPRINT RIP software allows to customize “template” according to the fixture and define each image. The real-time preview achieves what you see is what you print.

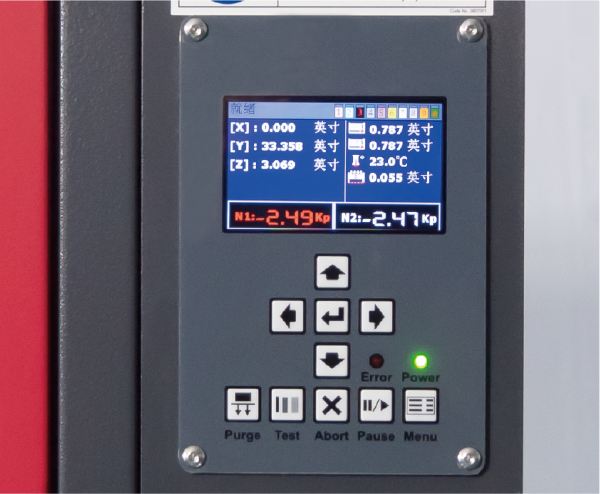

LCD Smart Panel

User friendly color LCD Smart Panel provides printer status information and offline printer control.

Active Negative Pressure System

An Active Negative Pressure System with digital control pressure display gauges ensures high-quality printing at higher possible firing frequency of inkjet printing with industrial piezo print heads.

Automatic Ink Supply System

Automatic Ink Supply System monitors and controls the ink levels of main and sub ink tanks with liquid level sensors. The alarm will be automatically triggered for ink shortage or overflows.

Print Head Maintenance Module

Based on an all-in-one design concept, the small and compact Print Head Maintenance Module allows automatic purging, wiping and capping for convenient unattended operation.

Applications

● Industrial Decorations	● Indoor Displays	● Electronic Products	● Control Panels
● Cartons	● IC Cards	● Novelties & Gifts	● Stationery & Toys

Specifications

Print System	DOD piezo electric grayscale print heads Automatic voltage and temperature control Double UV-LED lamps with air cooled

Ink System	UV curable ink, 1L main ink tank for each color Primer/ W + CMYKLcLm + OrGr + V, 10 channels Automatic ink supply system Active negative pressure system

Media	Supports PVC, wood, glass, foam board, acrylic, tile, metal, plywood, plastic, etc. Weight: max. 20 kg (44 lb)

RIP and User Interface	ColorPRINT RIP software; Color LCD Control Panel; Printer Control Software (PCS)

Operational Environment	Temperature: 16-28°C (61-82°F) Humidity: 40-70% (Recommended) Altitude: up to 1000 m (3281 ft) Electrical: Single phase 220 V±10% (50/ 60 Hz, AC); 10 A; 2200 W

Formats	Popular desktop file formats, including JPEG, TIFF, PDF, EPS and DCS

Connectivity	Fast Ethernet

Table & Max. Printing Zone Size (W × D)

1100 × 610 mm (43.3” × 24.0”)

Max. Media Thickness

(W × D)

150 mm (5.9”)

Dimensions

(W × D × H)

2655mm × 1480mm × 1705mm
(104.5" × 58.3" × 67.1")

PRINT PRODUCTIVITY		TDS PRO
Print Head Model		MH5320
Number of Heads		4	5	6
Colors		CMYKLcLm + OrGr	W + CMYKLcLm + OrGr	W + CMYKLcLm + OrGr + V
Productivity Unit: m²/hr. (ft²/hr.)	1440 × 600 dpi, 4 pass	17.3 (186.7)	16.1 (172.8)	6.7 (71.7)
	1440 × 900 dpi, 6 pass	13.4 (144.5)	12.4 (133.9)	4.5 (58)
	1440 × 600 dpi, 8 pass	10.7 (115.2)	9.9 (107)	5.4 (48)

Software

PCS Workflow

ColorPRINT


Main Window	Print Quality Settings

ColorPRINT is professional RIP software designed and developed for industrial inkjet printing applications. ColorPRINT offers fast RIP speed, reliable & efficient job printing production, and streamlined workflow. Users can easily obtain smooth gradient, vivid images and sharp small size text with its advanced RIP technology. ICC color management workflow ensures vivid and brilliant colors. ColorPRINT is available in ColorPRINT PS and ColorPRINT Server to satisfy the demands of medium-scaled and large-scaled users respectively.

PCS


Main Window	Print Head Settings	Print Mode Management

Printer Control Software (PCS) installed on a Host PC is designed for scanning inkjet printing. It offers a user-friendly interface to interactively control the printer, monitor printer status, and set printer options, such as the amplitude and pulse width of jetting waveforms and the temperature for each print head.

Amica’s PCS processes incoming RIP data and provides a software interface allowing RIP software to print jobs to the printer directly. The control interface features include print head cleaning, print head calibration, motor speed settings, and print head settings, etc.

MagicPage VDP

MagicPage is specially designed for monochrome and color variable data printing (VDP), supporting several types of objects, such as text, dates, times, graphics, logos, serial numbers, barcodes, MICR Fonts, and photo images. MagicPage’s features include template management, layout design, data merging, and output preview. MagicPage simplifies and streamlines a wide range of printing applications like security printing, mailings, labels, packaging, barcode printing, and business forms.


Main Window	Output Preview

Inks

NuviINK^®Graphics series

If you are looking for an ink that is vibrant and able to print photo-realistic images on a wide variety of media, NuviINK^®will satisfy your needs! NuviINK^®Graphics series for wide- format printing includes from UV ink to water-based ink, from solvent ink to mild-solvent ink.

NuviINK^® UV ink includes:

- Used for Ricoh print heads:

GUSAC
For more information, please download the GUSAC TDS.
The GUSAC ink has passed the US California Proposition 65 test. Please download and view the PROP 65 Test Report.
GUS-LV
For more information, please download the GUS-LV TDS.
GUV VARNISH
The GUV VARNISH ink has passed the US California Proposition 65 test. Please download and view the PROP 65 Test Report.
GUV-SR VARNISH
GUM PRIMER, GUM-LT PRIMER
