NuviPRINT RIP
Professional RIP Software

User-friendly interface
RIP software for industrial printing
Rich color management features
Fast processing for large amounts of data
Streamlined production workflow
More optional modules

NuviPRINT^® RIP is our latest professional RIP software, designed specifically for processing, interpreting, and printing a wide range of commonly used files. We not only have more than 30 years of experience in software R&D for inkjet printing and image processing, but also have the ability to design, manufacture and integrate solutions for industrial inkjet printing. NuviPRINT RIP is more suitable for the needs of color management, high-speed printing, and mass production of industrial inkjet printing than other RIP software.

Whether a PDF file or an image file, whether static information or variable data, NuviPRINT RIP empowers users to print jobs with high quality and efficiency.

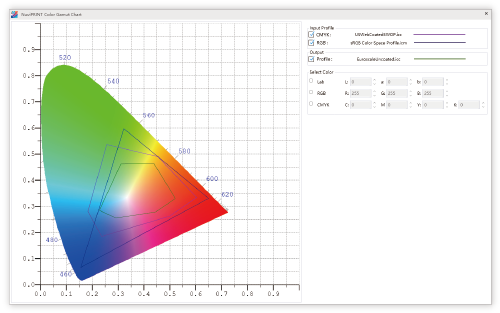

Color Gamut Verification

Color Management

Based on the new algorithm, color reproduction is more accurate when printing in four-color, six-color, eight-color.
The color gamut verification feature allows users to visually verify the printer's color capabilities, helping users quickly and easily determine if a specified color can be printed.

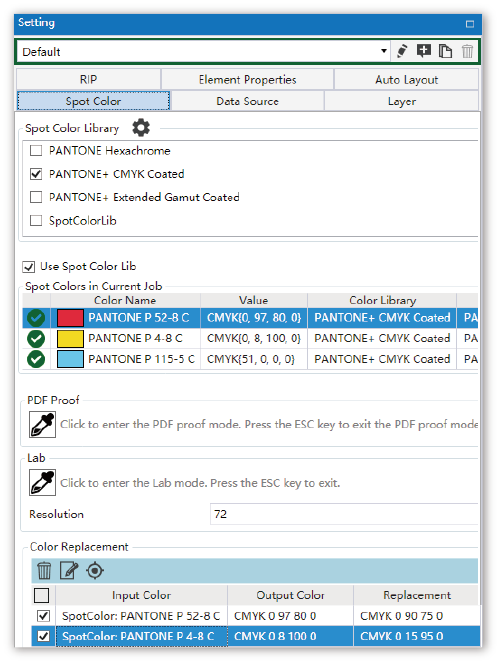

Spot color library; Spot color matching & replacement

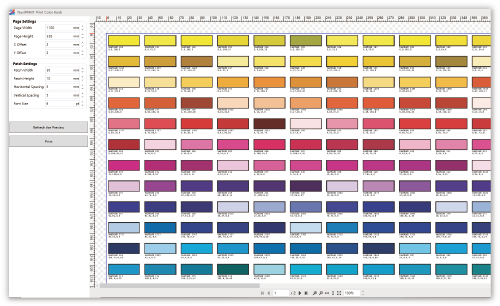

Color book

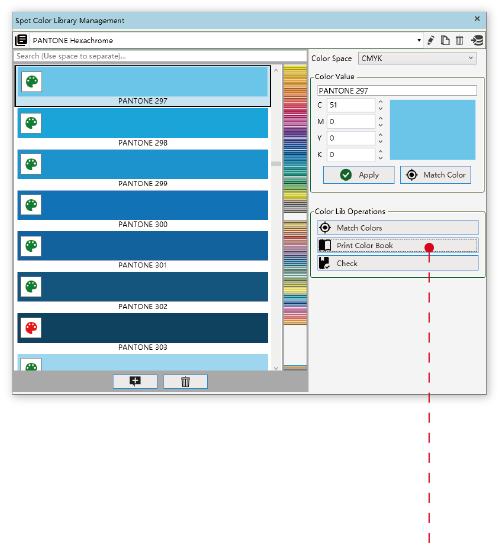

Spot Color Library

Color Book

Spot Color Matching & Replacement

Supports TCP/IP Network Communication

Send print data and simple print commands to NuviPRINT RIP via JSON files, making the production process more automated and intelligent.

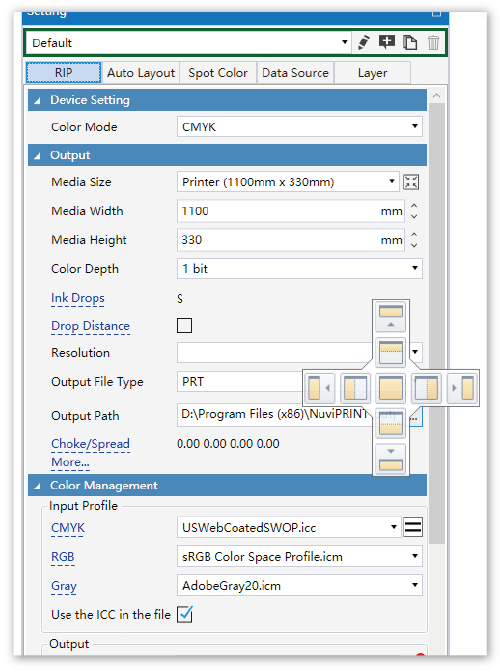

Floating Panel

User-Friendly Interface

Simple, elegant, and modular user interface
Custom user interface layouts
Hides or unhides panels
Supports floating panels
Select frequently used functions by switching tabs

Flexible PDF Layouts

A single page can be composed of multiple PDF files
Different PDF elements can have different sources from different hot folders
Supports filtering PDF file sources by file name
Provides more flexible template settings for automatic layouts and supports containers
Supports PDF cropping and printing of specific content from a PDF file
Chooses freely between different print jobs
Supports enlarging the PDF preview to any scale

Optional Modules

NuviPRINT RIP is available in both general and bottle versions to meet the needs of industrial inkjet printing production. At the same time, the software also has excellent scalability, and provides various optional modules with the growth of enterprises and different application needs.

NuviProfiler - ICC Profile Module

Helps you create, edit, and fine-tune ICC profiles to ensure accurate and consistent color reproduction.
- Creates ICC profiles for CMYK and CMYKLcLm inkjet printers
- Creates an ICC profile based on the 2-bit print mode
- Supports automatic correction of density curves and visualization of correction results
- The ICC profile created can be checked by the ∆E value

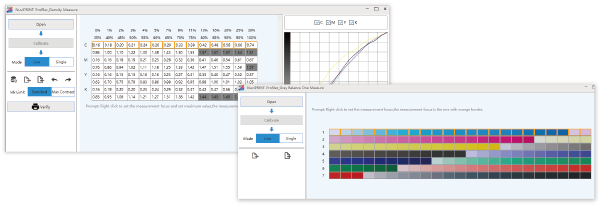

Density Measurement

Gray Balance Measurement
Industrial Variable Data Printing Management

NuviPRINT is equipped with the capabilities to modify variable data and create complex layouts.
- Types of variable data include text, numbers, graphics, dates, times, serial numbers, images, SVG images, barcodes and 2D codes, etc
- Allows users to add multiple data sources, and the data sources are editable
- Ability to read information from one data source and print data from another

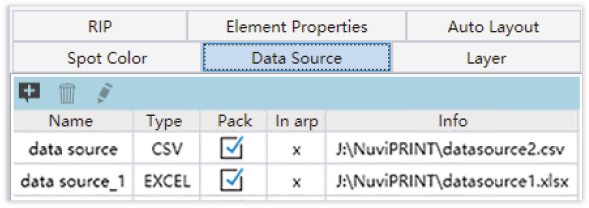

Import Data Source
Ink Consumption Estimation Module
- Based on the print settings of the selected job, the consumption of each ink is calculated
- Estimates the cost of each ink and the total ink cost

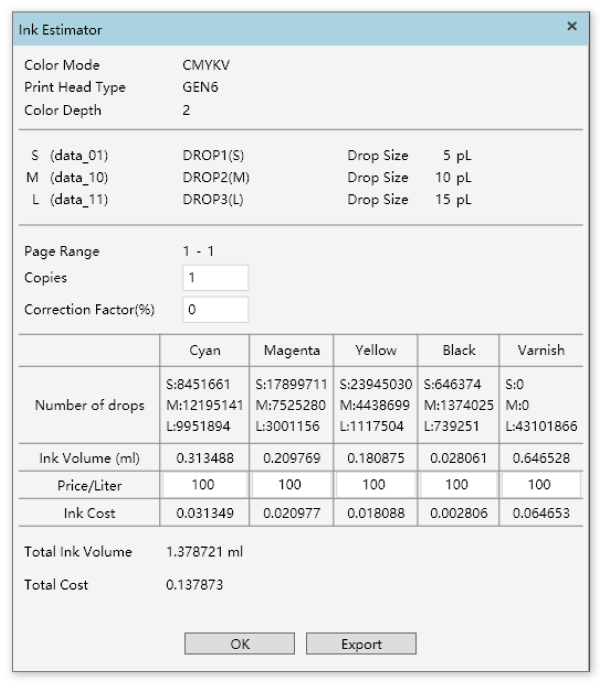

Ink Consumption and Cost Calculation
2.5D Embossing and Layered Printing Module
- Supports unlimited number of layers
- Supports clip tools, including pen, magic wand and rectangle.
- Supports edge contraction and spread of any layer and part of a layer

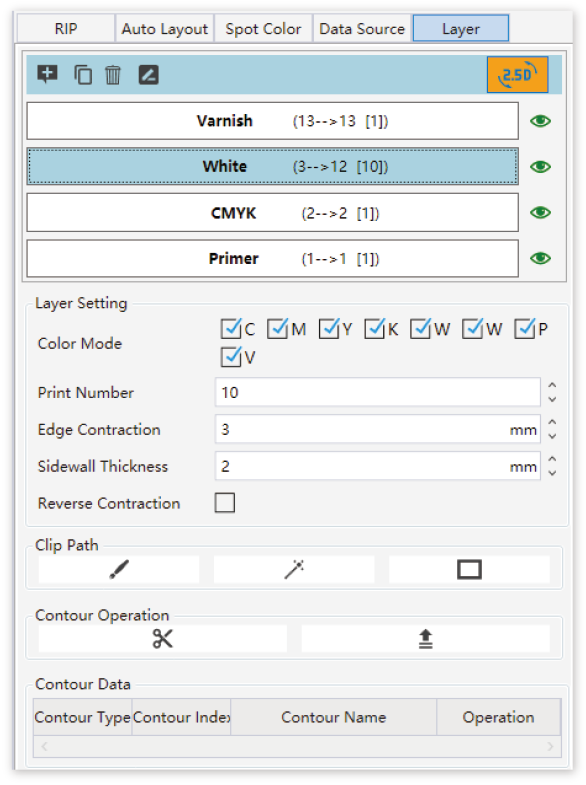

Layer Settings
Contour Cutting Module
- Generates a cut-contour file (.svg file) for a PDF file embedded with a contour spot color
- Specifies the path of the folder to save the cut-contour file
The blue dashed line indicates the contour cutting line.

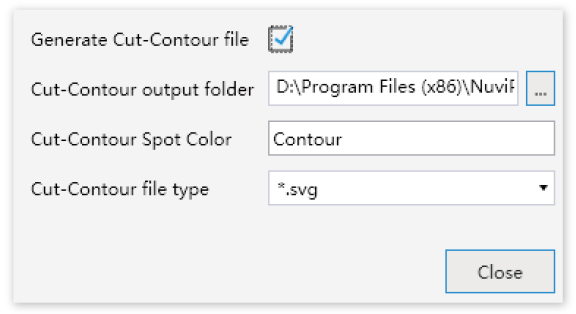

Settings for Contour Cutting
Adobe^® PDF Print Engine (APPE)

NuviPRINT RIP not only meets the output of popular PDF files, but also works with MagicPRINT software with Adobe PDF Print Engine (APPE) embedded to achieve faster RIP speeds and support for PDF/VT files.
- Faster RIP for PDF files; Supports PDF/VT files
- Built to aid high-volume printing operations
- The overall handling of multi-page PDF files has been improved
- The overall processing efficiency of PDF/X and PDF/VT has been further optimized

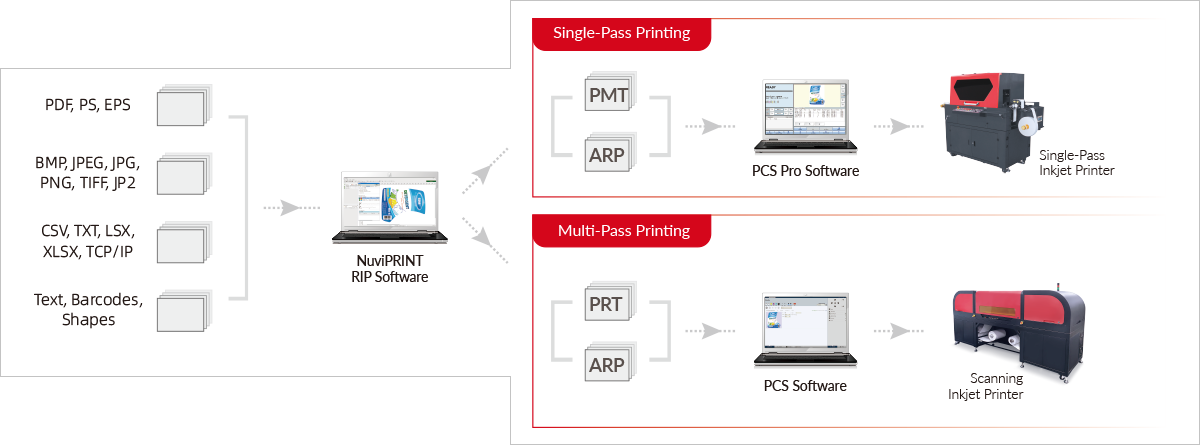

STREAMLINED PRODUCTION WORKFLOW

NuviPRINT^® RIP software is directly connected to the Printer Control Software, making the process more streamlined than ever before. Not only does it reduce operating time, but it also provides predictable, high-quality output.

Support multi-task queue and visual progress display
Real-time monitoring of the Hot Folder to automatically monitor and print.
Image files, vector files, and variable data files are supported.

FEATURE LIST

NuviPRINT	Standard	Optional
Engine	GhostScript Print Engine	Adobe^® Print Engine (APPE)
Supported Job Types	PDF/X-1a，PDF/X-3，PDF/X-4，.ps，.eps，.bmp，.jpeg，.jpg，.png， .tiff，.jp2，.CSV，TXT，LSX，XLSX，TCP/IP	PDF/VT
Output Files	PMT，PRT，ARP
Color Management	Spot Color (library), Color Replacement, Color Proof, Color Gamut Chart, Density Curve Edit, ICC Curve Edit, Ink Split (LcLm), Variable Dot Control	NuviProfiler (ICC Profile Module)
RIP Settings	Color Mode (CMYK, CMYKLcLm, Or, Gr, Gray, WVP, Spot Color) White/ Varnish/ Primer Dithering: Angled Screen, Error Diffusion, Stochastic Diffusion Advanced PDF Settings
Job Layout	Auto Layout (PDF and Image): Template and Container General Layout; Nest; Clip Path; Job design on bottles	Multi-layer; 2.5D; Cut-Contour

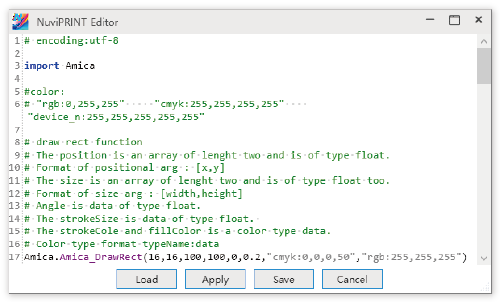

Variable Data Printing		Variable Data Printing; Forbidden Duplicated Print; JSON file (Python Editor)
Print Workflow	Hot Folder, Send Job to PCS to print, Real-time Monitor and Print, Print Queue
Others		Ink Estimation

NuviPRINT RIP software is widely used in:

Direct Mail
Tickets & cards
Commercial Printing
Industrial Decorations
Wide-Format Images
License Plates
Coding & Marking
Variable Data Printing
Labels & Packaging
Digital Textile
